Gabion Mattress Used for Revetments, Sea Wall and Channel Lining

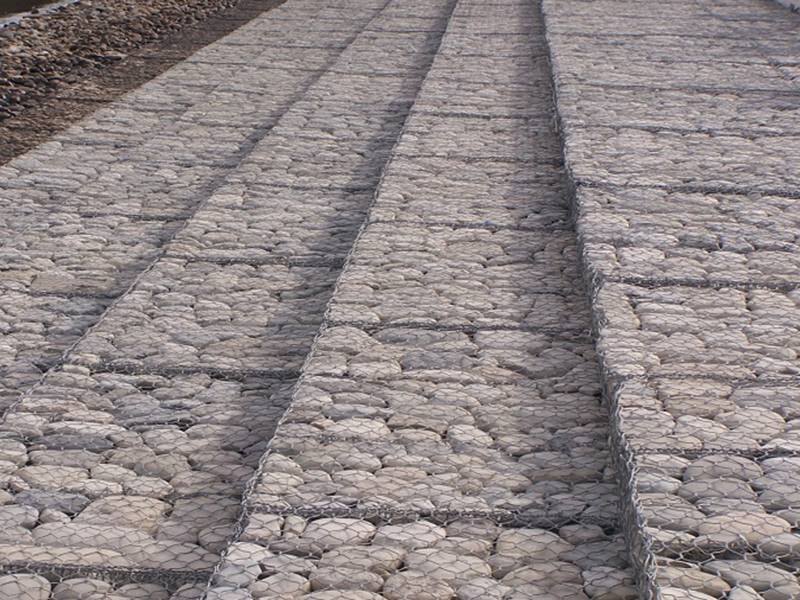

Woven gabion mattress beside the river.

Gabion mattress is the gabion application of large area and has a flat structure.

Gabion mattress is mainly made of hexagonal-hole double twist steel wire mesh, which is usually filled with stones to be used.

As a stable and strong revetment structure, it increases roughness coefficient of river banks and uses excellent shear resistance to reinforce river slopes. In addition, gabion mattress also can be applied to be ladder roads on mountains, which supplies walk convenience for people and creates a pleasing landscape look.

Feature

  • High stability.
  • Excellent shear resistance.
  • Good effect on flood controlling.
  • Superb permeability.
  • Economy.

Specification

  • Material
    High quality low carbon steel.
  • Structure
    Hexagonal double twist steel wire mesh.
  • Surface treatment
    Hot dipped galvanized and PVC coated.
  • Height
    0.15 m – 0.3 m.
  • Opening
    5 cm × 7 cm, 6 cm × 8 cm, 8 cm × 10 cm. Or accept customers' other requests.
  • Mesh wire diameter
    2 mm – 2.7 mm.
  • Selvedge wire diameter
    2.7 mm – 3.4 mm.
  • Tie wire diameter
    2 mm – 2.7 mm.
  • Metal coating thickness
    ≥ 245 g/m2.
  • Tensile strength
    ≥ 389 MPa.
Table 1: Gabion mattress (hexagonal double twist type)
Code Length Width Height Opening size
GMS-1 3 m 2 m 0.15 m, 1.2 m, 0.25 m 5 cm × 7 cm
GMS-2 4 m 2 m 0.15 m, 1.2 m, 0.25 m 5 cm × 7 cm
GMS-3 5 m 2 m 0.15 m, 1.2 m, 0.25 m 5 cm × 7 cm
GMS-4 6 m 2 m 0.15 m, 1.2 m, 0.25 m 5 cm × 7 cm
GMS-5 3 m 2 m 0.17 m, 0.23 m, 0.3 m 6 cm ×8 cm, 8 cm × 10 cm
GMS-6 4 m 2 m 0.17 m, 0.23 m, 0.3 m 6 cm ×8 cm, 8 cm × 10 cm
GMS-7 5 m 2 m 0.17 m, 0.23 m, 0.3 m 6 cm ×8 cm, 8 cm × 10 cm
GMS-8 6 m 2 m 0.17 m, 0.23 m, 0.3 m 6 cm ×8 cm, 8 cm × 10 cm
Table 2: gabion mattress (welded type)
Code Length Width Height Cells
GMA-1 12' 6' 6" 2
GMA-2 9' 6' 6" 3
GMA-3 9' 6' 9" 3
GMA-4 12' 6' 9: 4
GMA-5 9' 6' 12" 3
GMA-6 12' 6' 12" 4

Application

  • River bank protection.
  • Channel lining.
  • Weirs or sea wall.
  • Retaining wall.a
  • Highway embankments.
Gabion mattress is applied for sea wall to prevent flood.
Gabion mattress as a landscape or ladder road on the mountain.
Two sides of a river are gabion mattress.
