Filter Discs Serve the Filtration Industry

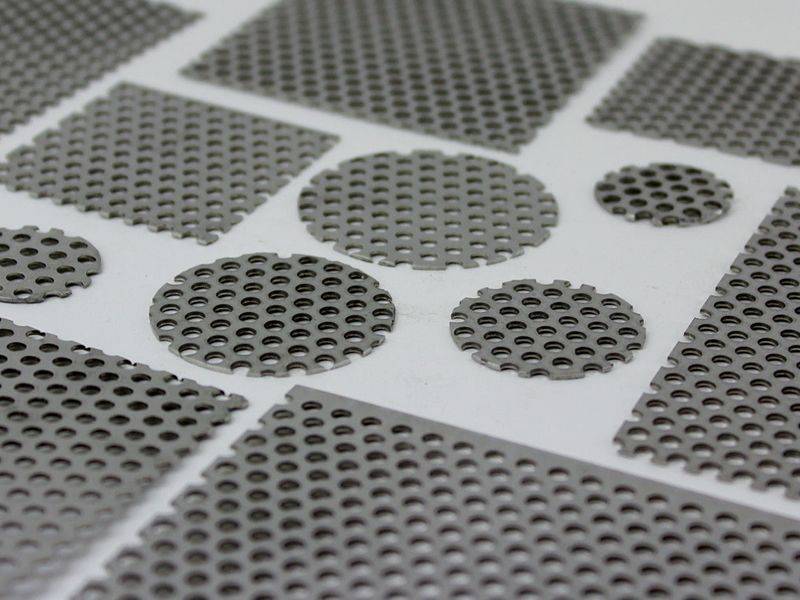

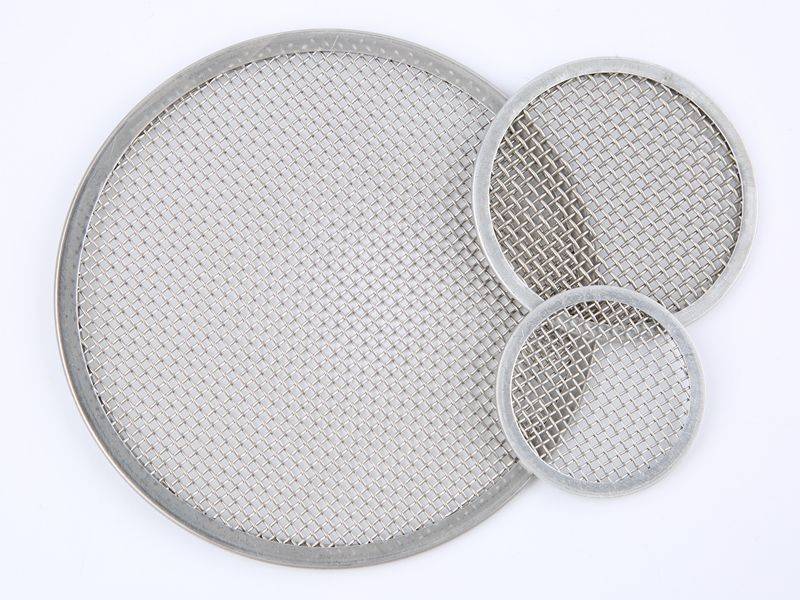

These are some of filter discs that we offer, they have different configurations.

To meet different filtration needs, we offer custom filter discs upon requirement.

Filter disc is processed by stainless steel woven wire mesh, galvanized wire mesh, sintered mesh, brass wire cloth, etc. Due to its corrosion resistance and mechanical strength, it is mainly used to remove unwanted impurities from fluid, gas or solid. Filter discs are offered in different materials, sizes as well as custom designs which could meet your different filtration demands. The discs find their applications in the absorption, evaporation and filtration process in the industries such as petroleum, chemical, metallurgy, food and beverage, medicine and automobiles.

Feature

  • Various micron ratings.
  • Accurate filtration precision.
  • Available in multiple layers for good mechanical strength and fine filtration.
  • No media migration.
  • Shapes and sizes to meet customer requirements.
  • Low cost.
  • Maximum protection.
  • Minimum pressure drop.
  • Can be rinsed repeatedly.

Specification

  • Material
    stainless steel (302, 304, 304L, 316, 316L), wire cloth, brass wire mesh, black wire cloth, galvanized wire mesh, stainless steel sintered felt.
  • Disc diameters
    5–3000 mm.
  • Shapes
    square, rectangular, round, oval, annular, kidney shape, fan-shaped and custom designs.
  • Mesh
    10–635 meshes.
  • Filtration accuracy
    2–1000 µm.
  • Structure
    single layer or multiple layers, with custom welding spots.
  • Frame style
    with or without frame and spot welding.

Application

Filter discs are mainly used in the process of distillation, absorption, evaporation and filtration, eliminating the entrained droplets in steam or gas and liquid across the industries including rubber, plastic, grain and oil screening, oil refining, chemical, metallurgy, medicine, machinery, food and beverage, etc.
