Spiral Perforated Pipe – Welded Pipe, Lock Seam Pipe

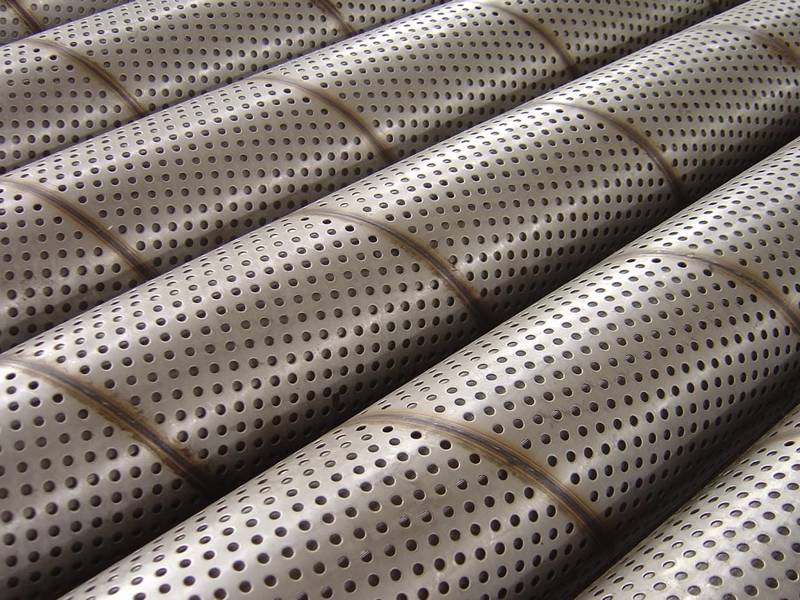

Spiral welded perforated pipes with round holes.

Spiral perforated pipe with high strength and continuous length is popular for fluid filtration.

Spiral perforated pipe with continuous length, also called spiral pipe or spiral tube, can be divided into spiral welded pipe and spiral lock seam pipe. Spiral welded pipe is produced by grinding, plating, sand blasting, deburring and buffing, which features the high precision technology, and spiral lock seam pipe is formed by folding the overlapping edges against each other, which features the inside lock seam, outside flush surface and popular for fluid filtration.

Feature

  • Stronger than straight pipe.
  • Provide continuous length.
  • High precision and quality.
  • Corrosion and rust resistance.
  • Durable and long service life.

Specification

  • Material
    Mild carbon steel, stainless steel, aluminum steel.
  • Outside diameter
    1" to 12".
  • Hole diameter
    0.06" to 0.375".
  • Hole shape
    Round, square, slot.
  • Hole distribution
    Straight line, staggered.
  • Open area
    Up to 65%.
  • Thickness
    0.024" to 0.165".
  • Length
    Up to 60".
  • Type
    Spiral welded pipe, spiral lock seam pipe.

Application

  • Used in pulp mills.
  • Used in chemical processing and brewing industries.
