Durable Stainless Steel filter mesh ls Used to Filter Animal & Oil-Seed

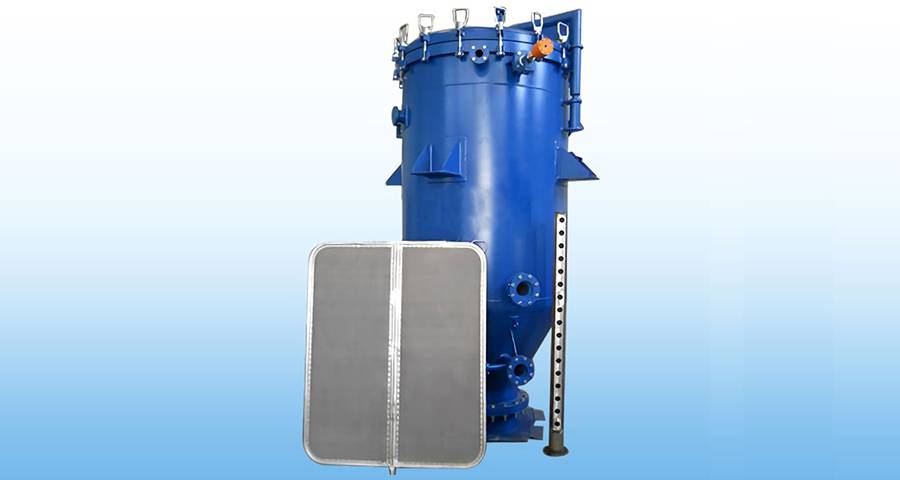

Walcoom stainless steel filter mesh is only a fine opening mesh product with two shapes, rectangle and square. The size of stainless steel filter mesh transferred into pressure leaf filter meet the tank structure. The stainless steel filter meshes are wide use all around the world, designed to filter edible oil and animal fat, for instance sunflower oil, rice bran oil, cottonseed oil, palm oil, sunflower oil, etc.

The properties of stainless steel filter mesh includes the characteristics of superior corrosion-resistant, light-weight, easy assembly, fine mesh opening, thus provide you refined oil as you expected. Unlike Indian vegetable oil filter requires a large work force to handle. Stainless steel filter mesh is simple, economical and solid product and do not require manpower.

Walcoom stainless steel filter mesh as oil filtration mesh is mainly designed to filter animal fat and vegetable oil but also available to other industries, for example, molten sulphur, petroleum, paint, food and pharmacy.

Advantage

  • Fine opening mesh
  • Simple & sturdy construction.
  • Anti-corrosion and rust.
  • Long service life.
  • Light-weight and easy to assembly.
  • Low maintain cost.

Specification

  • Material
    AISI304, 316L stainless steel.
  • Color
    Silver and grey.
  • Filter rate
    98%.
  • Standard
    ISO 9001.
  • Shape
    Rectangle, square, round (customized according to buyers' needs)
  • Type

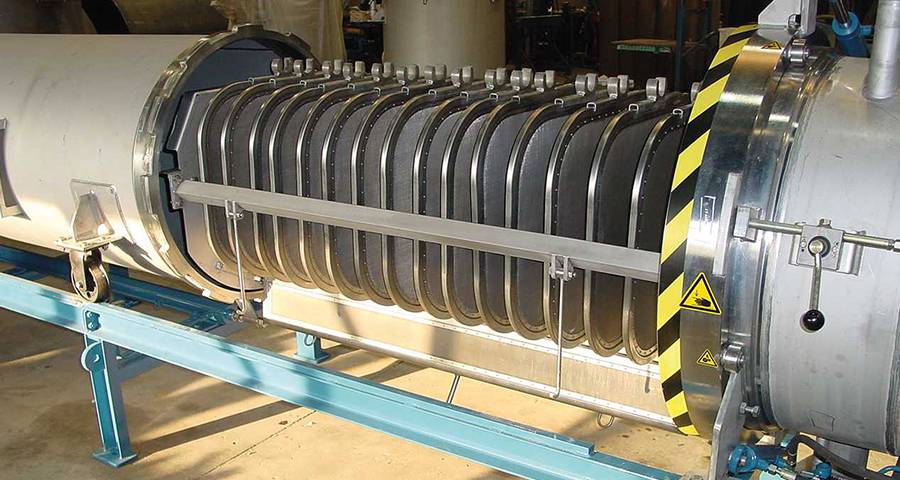

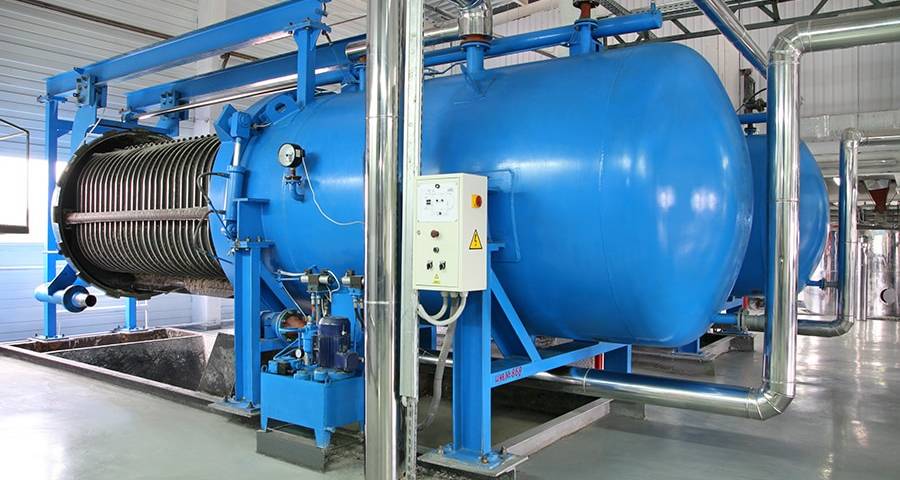

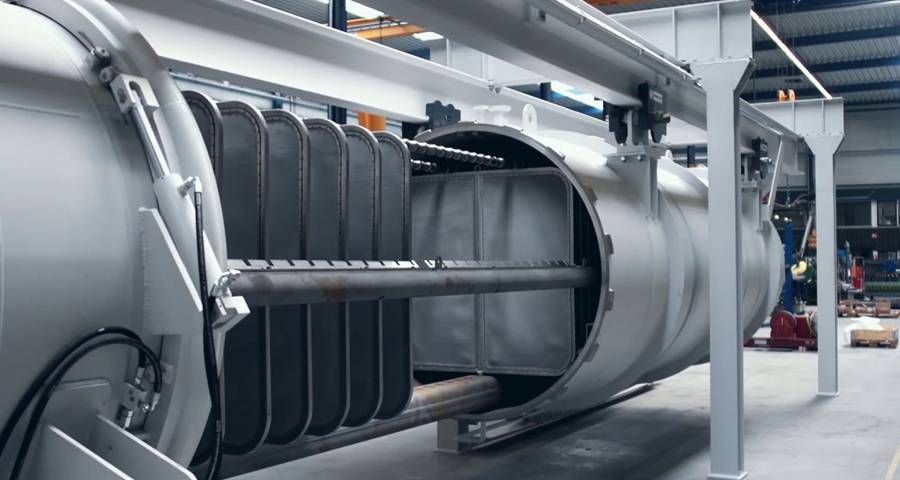

    Vertical pressure leaf filter and horizontal pressure leaf filter.
  • Package
    Waterproof paper box.
  • Mesh process
Table-1: Specification of Plain Dutch Weave
Material Mesh Wire diameter (mm) Absolute microns Nominal microns Weight kg/m2
Count/inch warp weft
AISI 304/316L 12 × 64 0.58 0.40 270–285 200-205 3.64
AISI 304/316L 14 × 88 0.50 0.33 225–245 150-155 3.27
AISI 304/316L 24 × 110 0.36 0.25 115–125 80-85 2.70
AISI 304/316L 30 × 150 0.23 0.18 95–100 65-70 1.60
AISI 304/316L 40 × 200 0.18 0.14 65–70 55-60 1.30
AISI 304/316L 50 × 250 0.14 0.11 55–60 40-45 1.00
AISI 304/316L 80 × 400 0.125 0.071 43–48 35-40 0.81
Table-2: Specification of Reverse Dutch Weave
Material Mesh Count/inch Wire diameter (mm) Absolute microns Nominal microns Porosity (%)
AISI 304/316L 128/36 0.202/0.400 95-105 80 55
AISI 304/316L 170/50 0.150/0.300 82-90 60 54
AISI 304/316L 290/75 0.090/0.200 50-55 40 53
AISI 304/316L 625/125 0.040/0.130 25-32 17 55
AISI 304/316L 132/16 0.355/0.457 210-260 250 45
AISI 304/316L 260/40 0.150/0.220 80-95 125 53
AISI 304/316L 325/40 0.150/0.300 45-75 55 43
AISI 304/316L 400/125 0.065/0.100 60-70 60 61
Table-3: Specification of Plain Weave
Material Mesh Count/inch Wire diameter (mm) Wire diameter (mm) Open Area Weight (kg/m2)
AISI 304/316L 3 1.6 6.867 66% 3.82
AISI 304/316L 3 1.4 7.067 70% 2.92
AISI 304/316L 4 1.6 4.75 56% 5.09
AISI 304/316L 4 1.4 4.95 61% 3.89
AISI 304/316L 5 1.2 3.83 57% 3.88
AISI 304/316L 5 1 4.08 65% 2.48
AISI 304/316L 6 1.4 2.833 45% 5.84
AISI 304/316L 8 0.8 2.375 56% 2.54
AISI 304/316L 8 0.71 2.465 60% 2
AISI 304/316L 10 0.9 1.64 42% 4.02
AISI 304/316L 12 0.8 1.317 39% 3.82
AISI 304/316L 12 0.71 1.407 44% 3.01
AISI 304/316L 16 0.63 0.958 36% 3.15
AISI 304/316L 20 0.5 0.77 37% 2.48
AISI 304/316L 20 0.45 0.82 42% 2.01
AISI 304/316L 24 0.45 0.608 33% 2.41
AISI 304/316L 24 0.355 0.703 44% 1.5
AISI 304/316L 28 0.355 0.552 37% 1.75
AISI 304/316L 60 0.185 0.243 33% 0.97
AISI 304/316L 60 0.16 0.263 39% 0.76
