Fine Mesh Opening Stainless Steel Printing Mesh Suit to Screen Printer

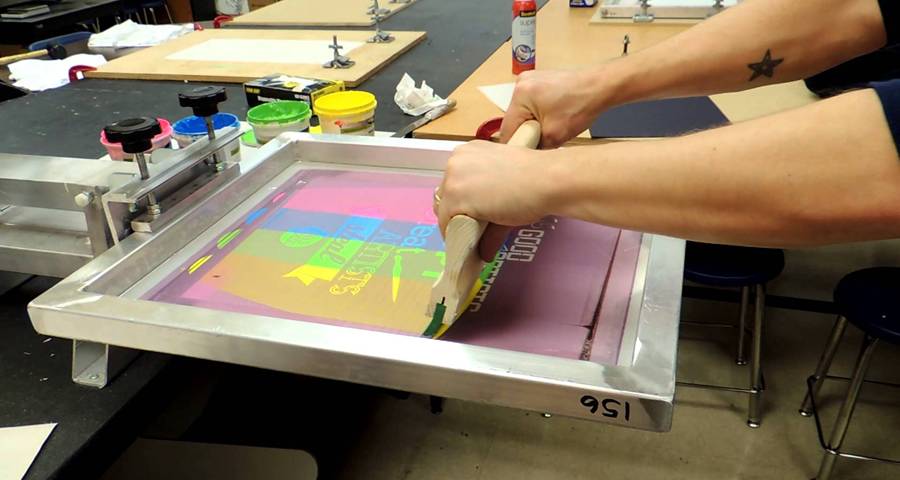

Nowadays, for special use, stainless steel printing mesh often apply to screen printer. Screen printing is a printing technique by using a fine mesh to transfer ink onto substrate. Ink is forced to fill with the open mesh aperture. Unlike traditional materials of printing mesh which is made of polyester, stainless steel printing mesh with superior features of good solvent resistance, low elongation, and good heat-melting resistance.

Walcoom stainless steel printing mesh is ultra-thin and fine mesh opening for the use in screen printer. It has uniform mesh opening, flat surface with knots not only resistant to acid, alkali but also easy for assembly and easy-washed.

Currently, stainless steel printing mesh is also wide used in the plate making of electronics, textiles, ceramics, glass, industries and filtration of aviation, airspace and petrochemical industries.

Advantage

  • Fine mesh opening.
  • Good anti-corrosion.
  • Good heat-melting resistance.
  • Small elongation but high tension.
  • No static charge
  • Easy assembly and easy-washed.

Specification

  • Material
    SUS316L, SUS304N, 304HC, 304L, 316, 316L stainless steel.
  • Process
    Plain weave.
  • Wire diameter
    0.018–0.08 mm.
  • Standard
    ISO 9001.
  • Package
    Waterproof paper box.
Table-1: Specification of Stainless Steel Printing Mesh
Mesh size (inch) Wire, dia (μm) Opening (μm) Open area (%) Thickness (μm) Through ink (cm3 / m2 ) Calender thickness (μm)
80 × 80 90 228 52 198–207 103.0 168–170
80 × 80 120 198 39 276–288 92.9 228–230
100 × 100 100 154 36.8 230–240 77.2 188–190
120 × 120 80 132 39 184–192 65.8 148–150
150 × 150 60 109 41.7 138–144 50.0 138–142
165 × 165 45 109 50.1 95–104 45.1 78–80
165 × 165 50 104 45.6 110–115 45.6 88–90
180 × 180 45 96 46.4 99–104 41.5 78–80
180 × 180 50 91 42 115–120 41.7 88–90
200 × 200 40 87 46.9 81–82 43.0 68–70
200 × 200 50 77 37 115–120 42.0 88–90
230 × 230 35 75 46.7 72–76 37.0 50–67
250 × 250 30 72 49.7 63–64 30.0 48–49
250 × 250 35 67 43 76–78 32.0 59–61
250 × 250 40 62 49.7 82–86 34.0 50–80
270 × 270 35 59 39.4 76–80 30.0 58–70
290 × 290 20 68 41.7 43–44 18.4 29–30
300 × 300 30 55 38 66–68 28.0 40–59
325 × 325 23 55 49.8 49–53 25.4 38–39
325 × 325 28 50 41.7 63–64 26.4 50–51
325 × 325 30 48 38 66–68 24.0 40–59
325 × 325 25 48 43 52–54 18.7 41–50
400 × 400 18 46 51.3 36–40 20.0 28–30
400 × 400 23 41 40.7 50–54 20 35–48
