Knitted Mesh Gasket for Gland Rings and Grounding Buttons

Several knitted mesh gaskets with different types and sizes.

Knitted mesh gaskets always satisfy our customers with high durability and various styles.

Knitted wire mesh gasket is mainly made of stainless steel wire or tinned copper steel wire and the wires are knitted by circle knitting machine to form the soft but durable knitted mesh. The knitted mesh gasket has various types and sizes for choice. It is commonly knitted mesh with rubber, foam or elastomer core, which can recover quickly after compression. Besides, it can also be all metal type for heavy duty applications. With high strength and stability, knitted mesh gaskets are widely used for gland rings, grounding buttons or magnetron seals.

Specification

Material

Monel, aluminum, tinned copper steel, stainless steel wire.
Wire diameter

0.11 mm, 0.13 mm, and other diameters are available.
Type of all metal gasket

Common type, compressed type.
Knitted mesh gasket style

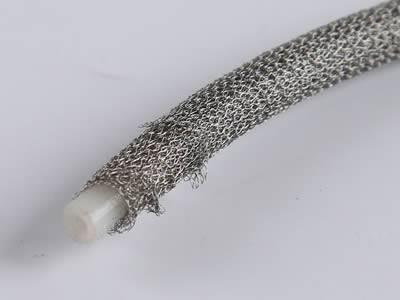

KMG-01: Elastomer core knitted gasket

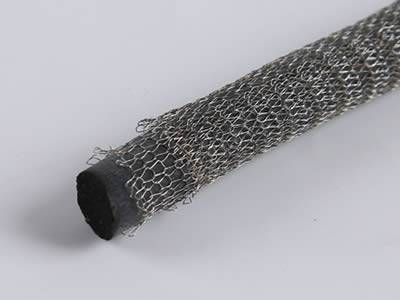

KMG-02: Foam core knitted gasket

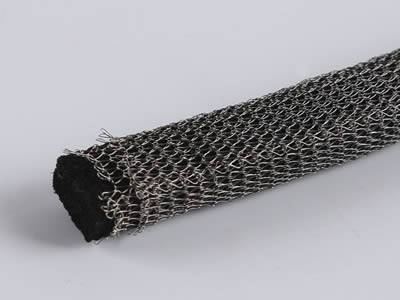

KMG-03: Rectangular knitted gasket

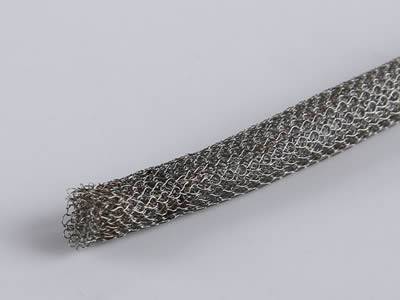

KMG-04: All metal knitted gasket

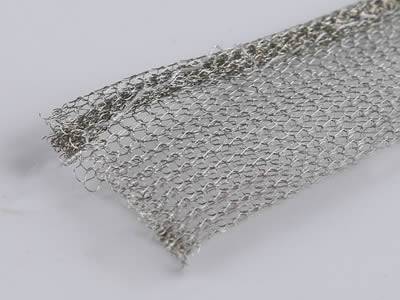

KMG-05: Tail knitted gasket

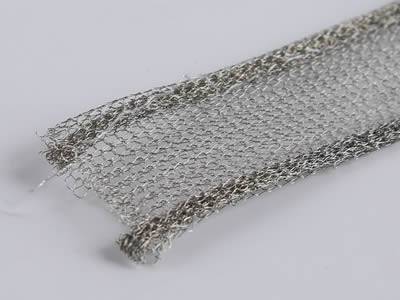

KMG-06: Double round knitted gasket

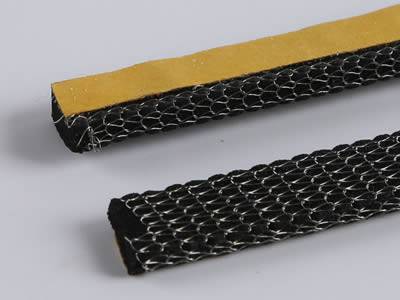

KMG-07: Knitted gasket with adhesive

KMG-08: Single side knitted gasket

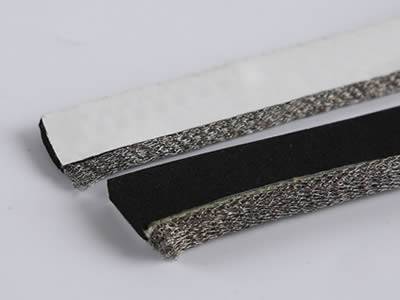

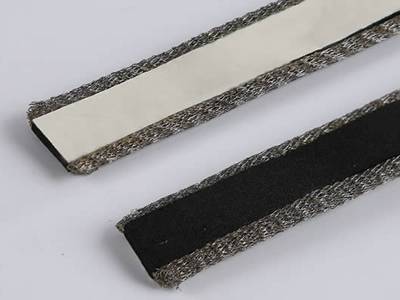

KMG-09: Double compressed gasket

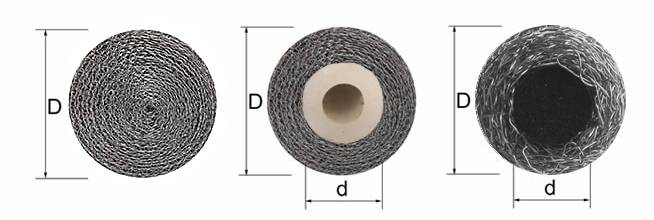

Table 1: Specification of Round Knitted Wire Mesh Gasket
All Metal Round Shape		Foam or Elastomer Core Round Shape

D (mm)	D (mm)	D × d (mm)	D × d (mm)
6.4	11.1	6.4 ×3.2	11.1 × 8.0
3.2	7.9	3.2 × 1.6	14.9 × 11.1
12.7	4.0	12.7 × 9.5	8.0 × 4.8
4.8	9.5	4.8 × 3.2	9.5 × 6.4
1.6	2.4	-	-

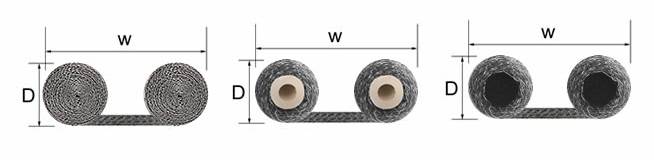

Table 2: Specification of Double Round Knitted Wire Mesh Gasket
D × w (mm)	D × w (mm)	D × w (mm)	D × w (mm)

1.6 × 9.5	3.2 × 12.7	6.4 × 15.9	1.6 × 12.7
3.2 × 15.9	6.4 × 19.1	1.6 × 15.9	4.8 × 15.9
6.4 × 25.4	2.4 × 12.7	4.8 × 19.1	9.5 × 25.4
3.2 × 9.5	4.8 × 25.4	12.7 × 25.4	-

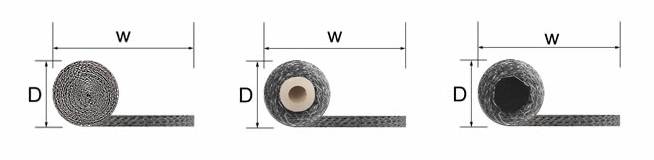

Table 3: Specification of Round with Tail Knitted Wire Mesh Gasket
D × w (mm)	D × w (mm)	D × w (mm)	D × w (mm)

1.6 × 9.5	3.2 × 15.9	6.4 × 12.7	9.4 × 25.4
1.6 × 12.7	3.2 × 19.1	6.4 × 15.9	9.5 × 15.9
1.6 × 15.9	4.0 × 12.7	6.4 × 19.1	9.5 × 19.1
1.6 × 19.1	4.0 × 19.1	6.4 × 25.4	9.5 × 25.4
2.4 × 12.7	4.8 × 12.7	7.9 × 15.9	11.1 × 19.1
2.4 × 15.9	4.8 × 15.9	7.9 × 19.1	11.1 × 25.4
2.4 × 19.1	4.8 × 19.1	7.9 × 25.4	12.7 × 19.1
3.2 × 12.7	4.8 × 25.4	9.4 × 19.1	12.7 × 25.4

Table 4: Specification of Rectangular Knitted Wire Mesh Gasket
w × h (mm)	w × h (mm)	w × h (mm)	w × h (mm)

2.4 × 3.2	6.4 × 3.2	19.1 × 12.7	2.4 × 4.8
6.4 × 6.4	20 × 6	2.4 × 6.4	6.4 × 9.5
20 × 8	3.2 × 1.6	12.7 × 6.4	20 × 10
3.2 × 3.2	12.7 × 9.5	20 × 12	3.2 × 4.0
12.7 × 12.7	20 × 20	3.2 × 4.8	15 × 6
25 × 6	3.2 × 6.4	15 × 8	25 × 8
3.2 × 9.5	15 × 10	25 × 10	-
