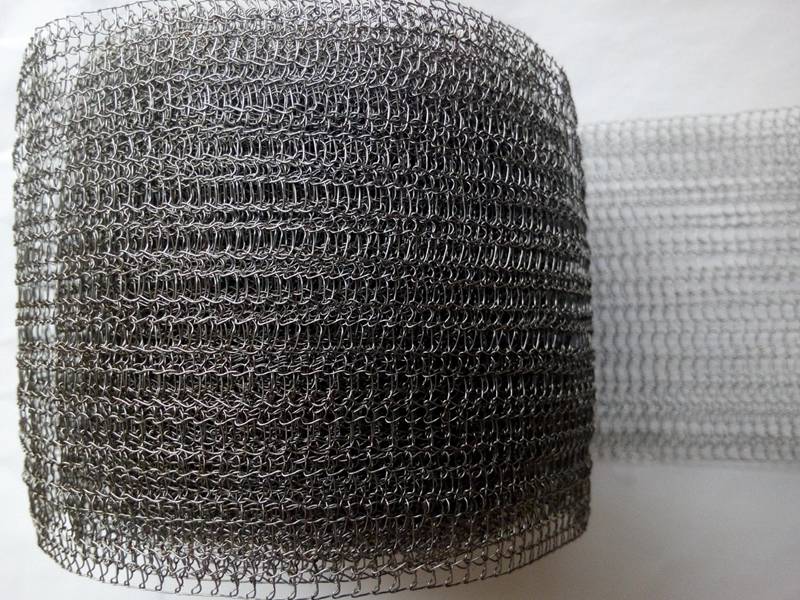

Knitted Wire Mesh is A Good Choice for Filtration Material

Featured by high strength and stability, knitted wire mesh is a good choice for filtration material.

Knitted wire mesh can be made of stainless steel, copper, brass, nickle, polypropylene, alloy or galvanized iron wire and the wire can be flat wire or round wire. The various knitted wires are knitted into a continuous sleeve with inter-linked wire loops by a circular knitted machine. Featured by high strength and perfect durability, knitted wire mesh is widely used as filtration materials, engine breathers, shielding mesh, mist eliminator, cleaning ball, etc.

Specification

Material

Stainless steel, copper, brass, nickle, polypropylene, alloy or galvanized iron wire.
Manufacturing method

Machine knitting.
Type

Flattened type, ginning type.
Wire shape

Round wire, flat wire.
Wire number

Single wire, double wires, three wires.

Table 1: Specification of Stainless Steel Flat Wire Knitted Mesh
Item	Wire Diameter (mm)	Mesh Opening or Loop Size (mm)	Number of Needles	Maximum Width (mm)	Minimum Width (mm)
SSF-01	0.1 × 0.3	2 × 4	36	60	55
SSF-02	0.1 × 0.3	4.5 × 4, 2.5 × 4	34	150	100
SSF-03	0.1 × 0.4	4.5 × 5.5, 2.5 × 5.5	40	150	120
SSF-04	0.1 × 0.4	4 × 3.5, 2.5 × 3.5	56	205	180
SSF-05	0.1 × 0.4	4 × 4, 3 × 4	65	260	240
SSF-06	0.2 × 0.4	5.2 × 3.5, 3 × 3.5	94	420	380
SSF-07	0.2 × 0.4	7.5 × 5, 5 × 5	102	565	490
SSF-08	0.2 × 0.5	5 × 4, 2.5 × 4	128	560	470
Note: Knitted mesh length can be customized according to customers' requirements.

Table 2: Specification of Stainless Steel Round Wire Knitted Mesh
Item	Type	Wire Diameter (mm)	Width (mm)	Number of Stitches Per cm on Length	Number of Stitches Per cm Across Lay Flat
SSR-01	fine mesh	0.08–0.18	6–300	3.5	4.4
SSR-02	medium fine mesh	0.16	40–600	2.4	3.5
SSR-03	standard mesh	0.18–0.35	30–1000	1.6	1.9
SSR-04	coarse mesh	0.25–0.40	30–1000	1.6	0.74
SSR-05	super coarse mesh	0.4–0.5	100–350	0.5	0.5
