Sintered Woven Mesh for Purification and Filtration of Liquid or Gas

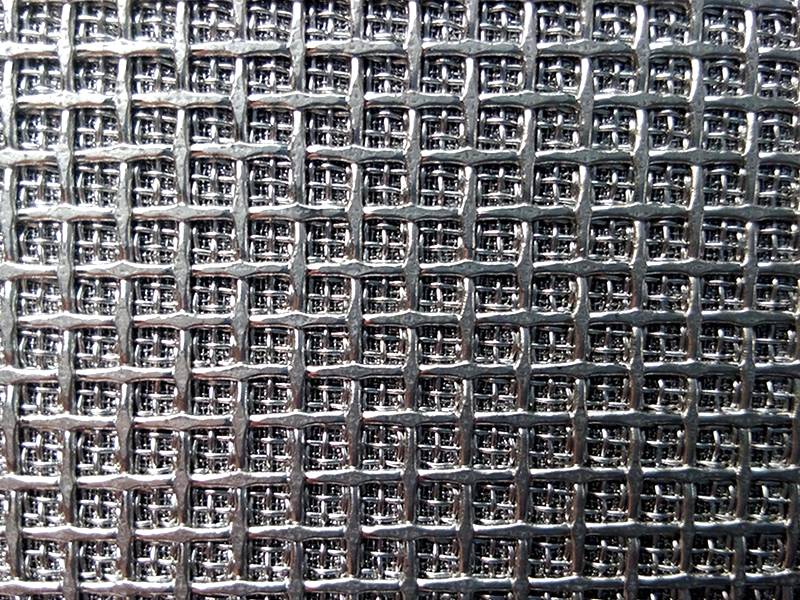

A piece of rectangular woven sintered wire mesh.

With high strength and precision, sintered woven wire mesh is a good choice for purification and filtration of liquid or gas.

Sintered woven wire mesh is mainly made of high quality stainless steel wire cloth, including plain weave type and dutch weave type. According to different filtration needs, it can be manufactured to single layer and multiple layers. It is corrosion and rust resistant and easy to clean. Featured by the high strength and accurate filter rating, sintered woven wire mesh is widely used for purification and filtration of liquid and gas. Besides, it's also can be used for separation and recovery of solid particle.

Specification

Material

Stainless steel 304, 316, 316L or alloy steel hastelloy, monel, inconel wire mesh.
Standard size (mm)

300 × 1000, 300 ×1500, 500 × 1000, 600 × 1200, 1000 × 1000, 1000× 1500, 1200 × 1200, 1200 × 1500.
Weave type

Plain weave, dutch weave.

Sintered plain weave mesh

Sintered dutch weave mesh
Mesh layer number

1 to 7.
Heat resistance

Up to 600 °C.

Table 1: Specification of 1 Ply Sintered Mesh
Item	Filter Rating (μm)	Size (mesh)	Wire Diameter (mm)	Thickness (mm)	Weight (kg/m²)
SLSM-01	5	200	0.07	0.1	0.011
SLSM-02	178	80	0.14	0.2	0.0772
SLSM-03	234	60	0.19	0.3	0.010
SLSM-04	279	50	0.23	0.4	0.012
SLSM-05	380	40	0.25	0.4	0.012
SLSM-06	540	30	0.30	0.4	0.013
SLSM-07	860	20	0.41	0.6	0.015
SLSM-08	2460	8	0.71	1.0	0.018

Table 2: Common Specification of Multi- Layer Sintered Mesh
Item	Structure	Filter Rating (μm)	Thickness (mm)	Weight (kg/m²)	Porosity (%)
MLSM-01	filter layer + 60	2-100	0.5	1.6	60
MLSM-02	60 + filter layer + 60	2-100	0.7	2.4	56
MLSM-03	50 + filter layer + 20	20-200	1.0	3.3	58
MLSM-04	filter layer + 20 + 8.5	20-250	2.0	6.5	58
MLSM-05	60 + filter layer + 40 + 20	2-200	1.0	4.4	44
MLSM-06	40 + filter layer + 20 + 16	2-200	1.7	6.2	54
MLSM-07	30 + filter layer + 60 + 20 + 16	2-200	1.9	5.3	52
MLSM-08	80 + filter layer + 30 + 10 + 8.5	2-200	2.5	8.8	55
MLSM-09	50 + filter layer + 40 + 20 + 40 + filter layer + 50	2-150	2.0	7.4	58
Note: The porosity takes that of 20 mesh as criteria, and other special structures can be manufactured.
