Chain Link Fence Is the Standard Fencing for Baseball & Softball Field

There is a baseball field installed with chain link fencing. The yellow fence cap is very striking.

Chain link outfield fence for baseball field

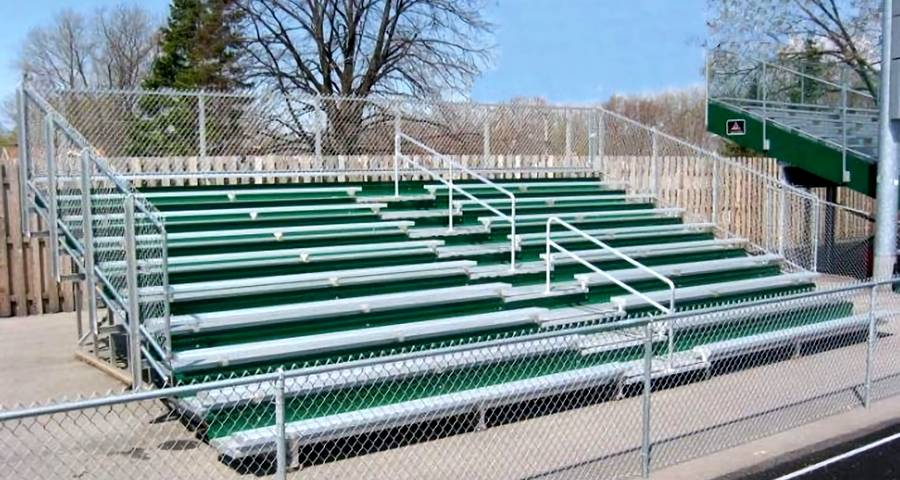

The spectator protective fencing of this baseball field is made of chain link fence.

Chain link spectator protective fence

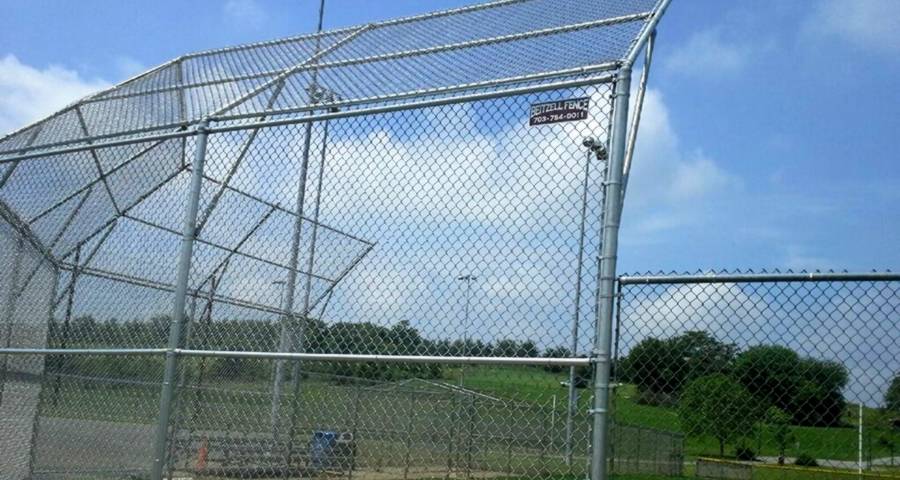

The backstop fencing of this baseball field is made of chain link fence.

Chain link backstop fencing

The player bench protective fencing of this baseball field is made of chain link fence.

Chain link layer bench protective fencing

Baseball and softball as the international sports event, there is a set of standard of the site facility, especially protective fencing. Chain link fence with good impact resistance yet not easily deformed, flat surface structure of solid, is the most suitable fencing for baseball and softball field. Even more noteworthy is the unique elasticity can provide a resting point for athletes when necessary.

Chain link baseball and softball fence is designed for prevent injuries or accidents that may occur during the sporting event due to thrown or batted balls. Chain link fence and frame welded together also provide access way for the baseball and softball field.

Walcoom chain link baseball and softball fence use 50 mm mesh opening from 9 gauge wire. The small mesh opening doesn’t provide a foothold or handhold, thus can hold back children or youth from climbing over or passing through the fence.

Specification

Material

Galvanized wire, Zn-5Al-MM coated wire, or PVC coated wire
Wire gauge

9 gauge.
Thickness of PVC coated layer

0.13 mm.
Mesh size

50 mm.
Selvage

Knuckle and knuckle.
Outfield fence
- Mesh size: 50 mm.
- Fence height: ≥ 2.4 m.
- Ground clearance: ≤ 25.4 mm.
Player bench protective fence
- Mesh size: 50 mm.
- Fence height: ≥ 2.44 m.
- Note: The protective fencing in front of an on-grade players bench, and below-grade dugouts.
Spectator protective fence
- Mesh size: 50 mm.
- Fence height: ≥ 2.4 m.
- Function: Protect spectators at the highest point of the bleachers to watch the game.
Backstop fence
- Mesh size: 50 mm.
- Fence height: ≥ 4.88 m.
- Function: Provide a containment of pitched, thrown, and batted balls.
Foul line fence
- Mesh size: 50 mm.
- Function: Protect the fielder from obstructions and other sideline objects, to contain the ball and prevent spectators from intruding onto the field.
Gates
- Mesh size: 50 mm.
- Fence height: ≥ 2.4 m.
- Function: Provide emergency and maintenance access to the field as well as for officials and players use.
Fence fittings

Posts, rails, top cap and braces for chain-link fence.
