Horse Fence Gate Used in Arenas, Stalls, Paddocks

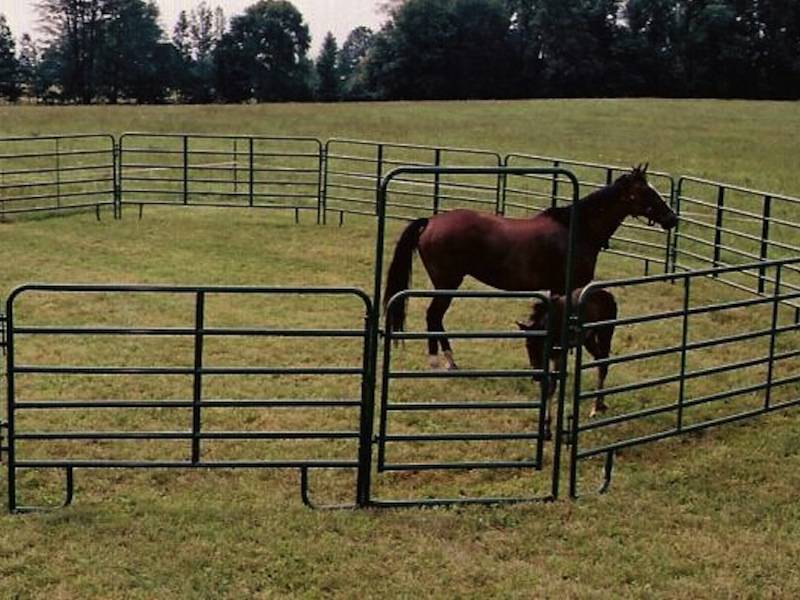

A horse fence gate on the grassland.

High strength and easy installation make horse fence gate outstanding in arenas, stalls and paddocks.

Horse fence gate, made of high quality low carbon steel pipe, includes all welded panel gate, bottom welded horse panel gate and portable corral panel gate. With electric or hot dipped galvanized surface, horse fence gate has perfect resistance to rust and ensures a long service life. Featured by high strength and easy installation, it is widely assembled with various horse fences for arenas fencing, paddocks fencing and stalls fencing.

Specification

Material

Low carbon steel pipe.
Typical surface treatment

Electric galvanized or hot-dipped galvanized.
Pipe thickness

0.065".

Table 1: Specifications of All Welded Panel Gate
Item	Pipe Diameter	Panel Height	Panel Width	Gate Width	Gate Height	Wire Mesh Diameter	Wire Mesh Opening	Wire Mesh Height	Rail Quantity
AWPG-01	1-5/8"	6'	12'	6'	7.5'	5"	2" × 4"	6'	5
AWPG-02	1-5/8"	6'	12'	6'	7.5'	5"	2" × 4"	6'	6
AWPG-03	1-5/8"	6'	16'	6'	7.5'	5"	2" × 4"	6'	5
AWPG-04	1-5/8"	6'	16'	6'	7.5'	5"	2" × 4"	6'	6
AWPG-05	1-5/8"	6'	24'	6'	7.5'	5"	2" × 4"	6'	4
AWPG-06	1-5/8"	6'	24'	6'	7.5'	5"	2" × 4"	3'	5
AWPG-07	1-5/8"	6'	24'	6'	7.5'	5"	2" × 4"	3'	6

Table 2: Specifications of Bottom Welded Horse Panel Gate
Item	Pipe Diameter	Panel Height	Panel Width	Gate Width	Wire Mesh Diameter	Wire Mesh Opening	Wire Mesh Height	Rail Quantity
BWPG-01	1-5/8"	5'	12'	6'	5"	2" × 4"	3'	4
BWPG-02	1-7/8"	5'	12'	6'	5"	2" × 4"	3'	4
BWPG-03	1-5/8"	5'	16'	6'	5"	2" × 4"	3'	4
BWPG-04	1-7/8"	6'	16'	6'	5"	2" × 4"	3'	4
BWPG-05	1-5/8"	5'	24'	6'	5"	2" × 4"	3'	4
BWPG-06	1-7/8"	5'	24'	6'	5"	2" × 4"	3'	4

Table 3: Specification of Portable Corral Panel Gate
Item	Pipe Diameter	Panel Height	Panel Width	Gate Height	Gate Width	Rail Quantity
PCPG-01	1-5/8"	5'	12'	7.5'	6'	3
PCPG-02	1-5/8"	5'	12'	7.5'	6'	4
PCPG-03	1-5/8"	5'	12'	7.5'	6'	5
PCPG-04	1-5/8"	6'	12'	7.5'	6'	6
PCPG-05	1-7/8"	5'	12'	7.5'	6'	3
PCPG-06	1-7/8"	5'	12'	7.5'	6'	5
PCPG-07	1-7/8"	5'	12'	7.5'	6'	4
PCPG-08	1-7/8"	6'	12'	7.5'	6'	6
PCPG-09	1-5/8"	5'	16'	7.5'	6'	3
PCPG-10	1-5/8"	5'	24'	7.5'	6'	3
PCPG-11	1-5/8"	5'	16'	7.5'	6'	4
PCPG-12	1-5/8"	5'	24'	7.5'	6'	4
PCPG-13	1-5/8"	5'	16'	7.5'	6'	5
PCPG-14	1-5/8"	5'	24'	7.5'	6'	5
PCPG-15	1-5/8"	6'	24'	7.5'	6'	6
PCPG-16	1-7/8"	5'	16'	7.5'	6'	3
HPGP-17	1-7/8"	5'	24'	7.5'	6'	3
HPGP-18	1-7/8"	5'	16'	7.5'	6'	4
HPGP-19	1-7/8"	5'	24'	7.5'	6'	4
HPGP-20	1-7/8"	5'	16'	7.5'	6'	5
HPGP-21	1-7/8"	5'	24'	7.5'	6'	5
HPGP-22	1-7/8"	6'	24'	7.5'	6'	6

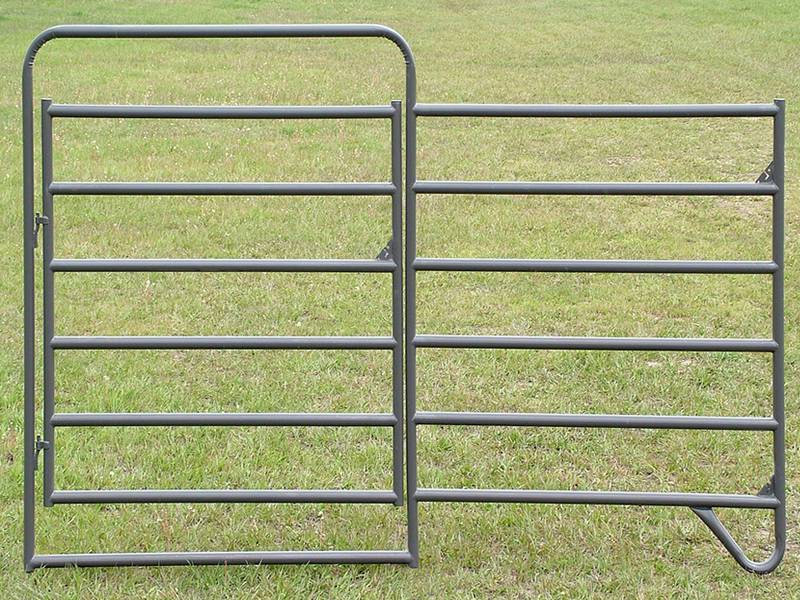

Horse Fence Gate with High Strength and Easy Installation
